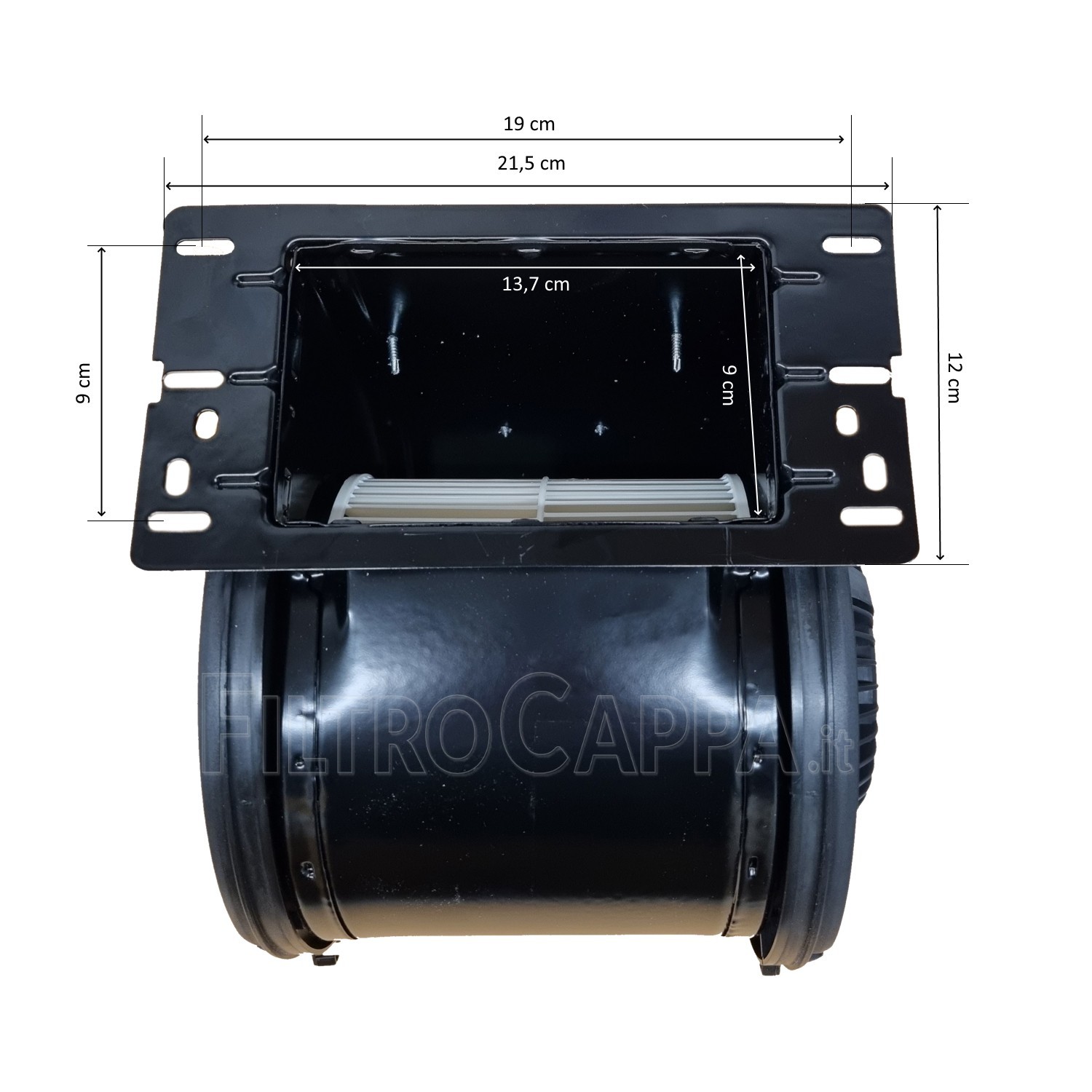

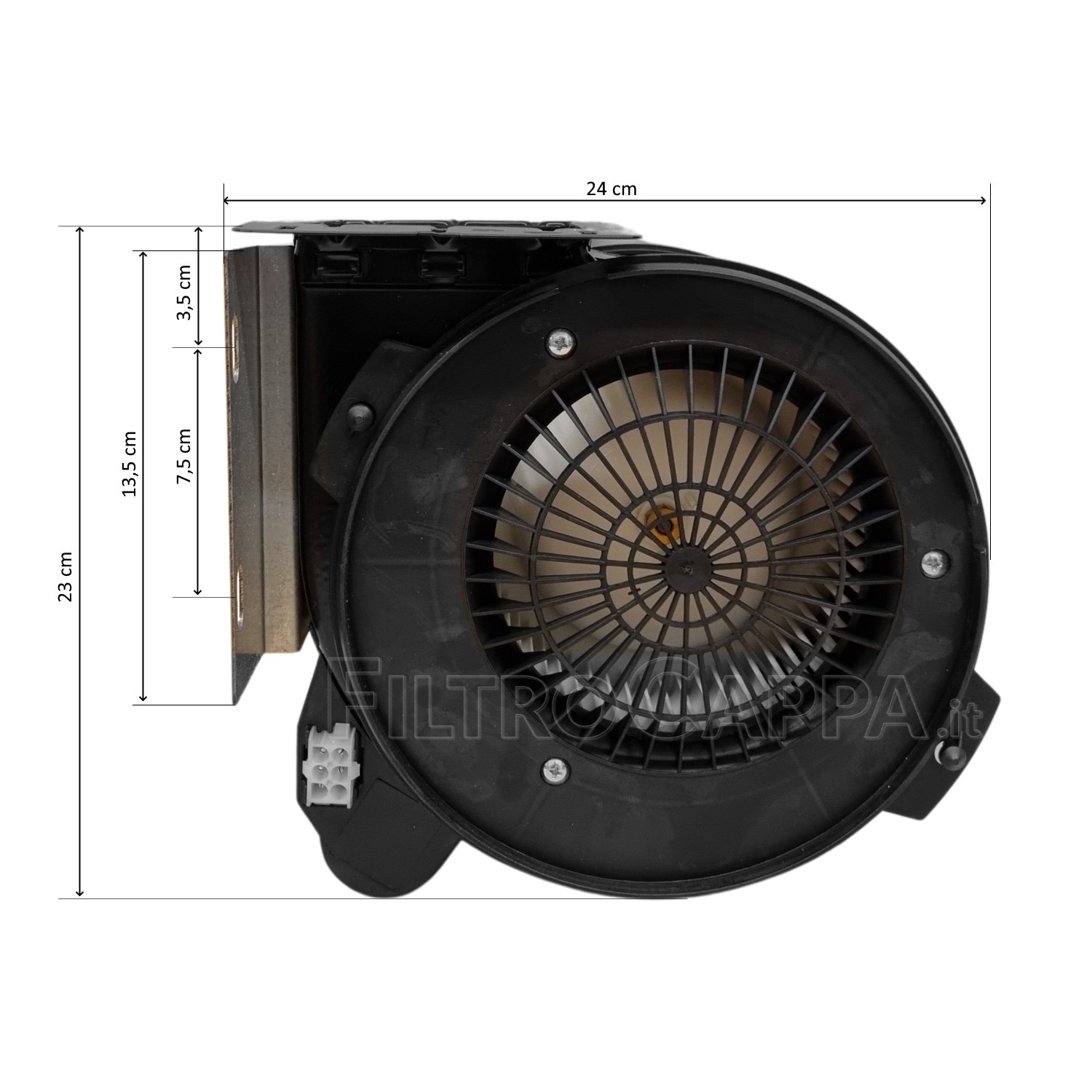

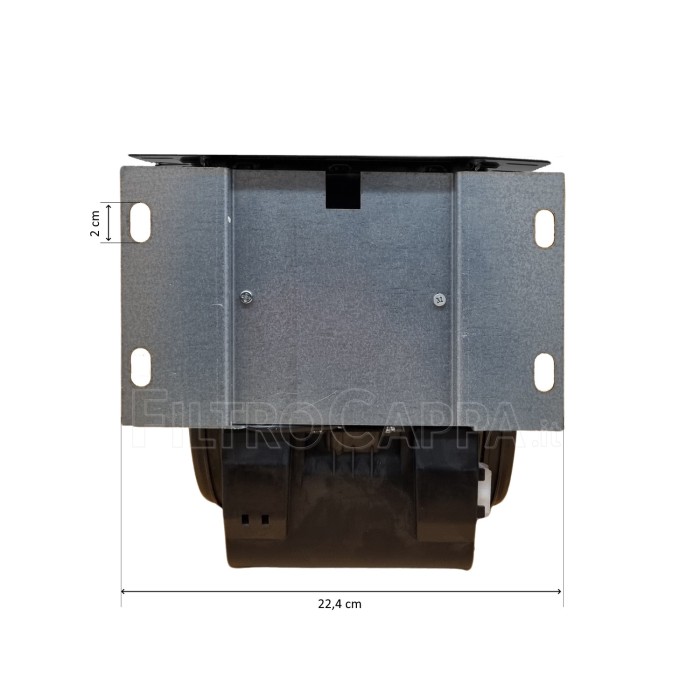

800 m³/h Motor for AIRONE Cooker Hood 4 Speeds
Compatible with AIRONE models:
ARIA ISOLA - DELOS 90 - DELOS 120 - ITACA 390 - ITACA 450 - ITACA ISOLA - MANTA 60 - MANTA 90 - MANTA 120 - MAYA 90 - MAYA 120 - MIRO’ 60 - MIRO’ 90 - MIURA - MURANO 60 - MURANO 90 - MURANO 120 - ONDA 90 - ONDA 120 - RUBIK ISOLA 40 - RUBIK ISOLA 60 - RUBIK ISOLA 90 - SLIM 70 - SLIM 90 - SLIM 120 - VIRGO 90 - VIRGO 120 - ZEUS ANGOLARE 90
Product code:
T40DT027
Key Features:
- Material: Metal
- Speeds: 4 adjustable levels
- Extraction capacity: 800 m³/h
- Compatibility: Specifically designed for AIRONE cooker hoods

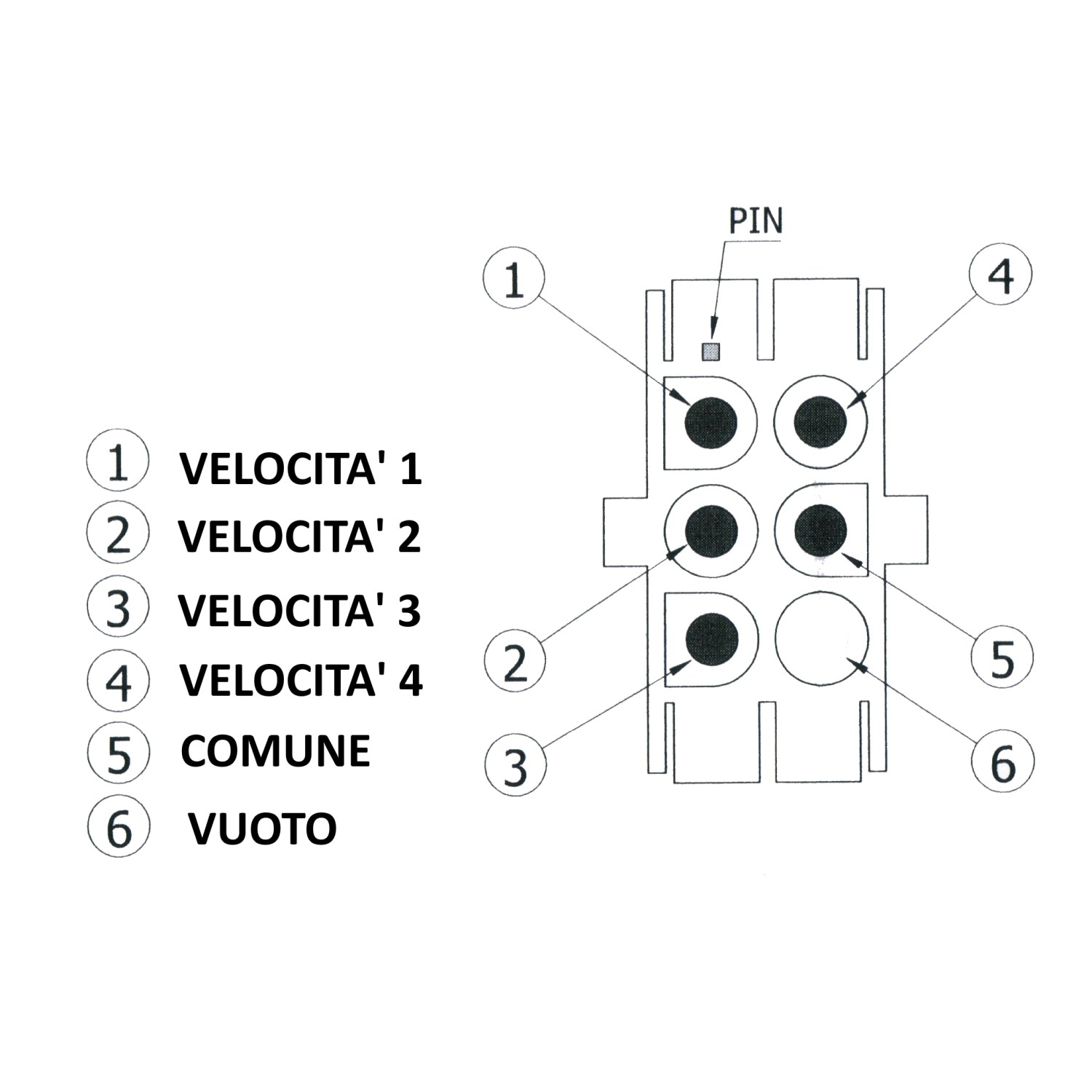

Electrical Wiring Diagram:
See attached photo for details:
The system uses a common wire shared among the different speeds of the motor, with each wire corresponding to a specific speed. This setup is standard for multi-speed motors in cooker hoods.
What happens if wiring is incorrect?
Incorrect wiring can lead to:
- Speeds not being selectable
- Reduced performance
- Short-circuits
In severe cases, it can irreparably damage the motor or compromise the safety of the system. Carefully follow the provided wiring diagram or consult a qualified technician for installation.
Important Note:

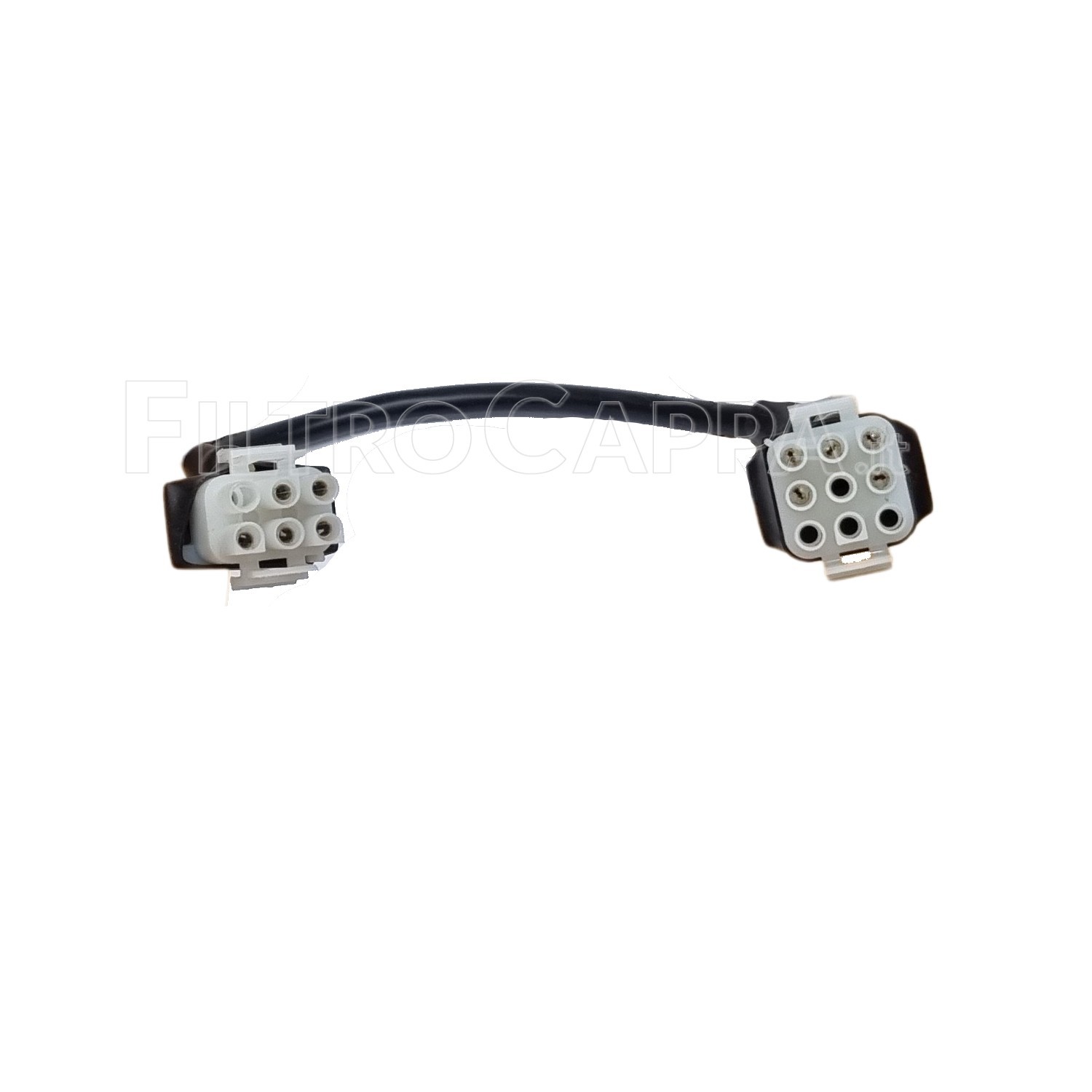

For compatibility with modern control panels, a wiring adapter may be required. This adapter ensures proper integration with newer control systems, avoiding operational issues.
This original 800 m³/h motor is engineered to provide powerful and reliable extraction for AIRONE cooker hoods. With four adjustable speeds and a sturdy metal structure, it is ideal for replacing or upgrading your hood’s extraction system, ensuring excellent performance and a fresh, vapor-free kitchen environment.
