- GENUINE PART

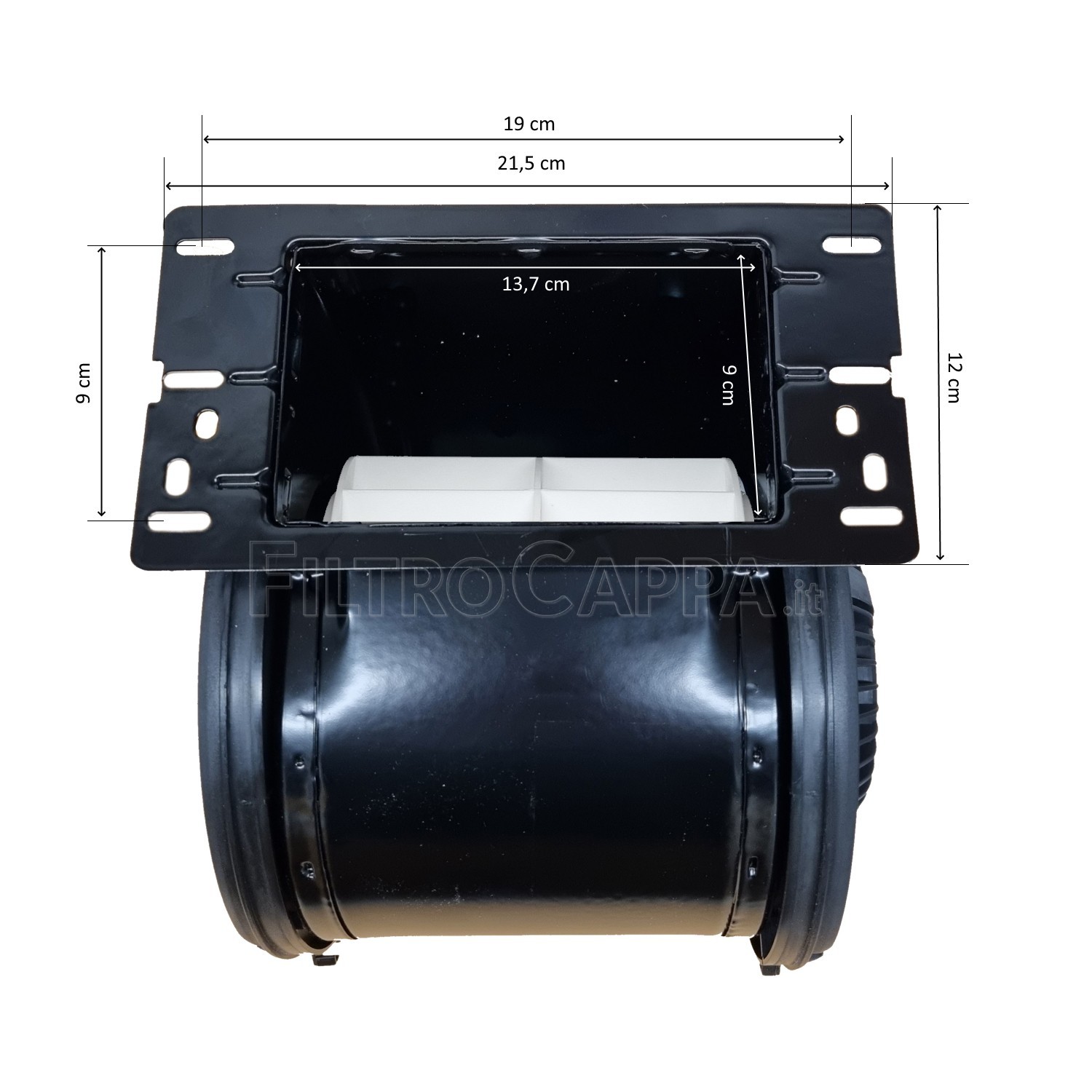

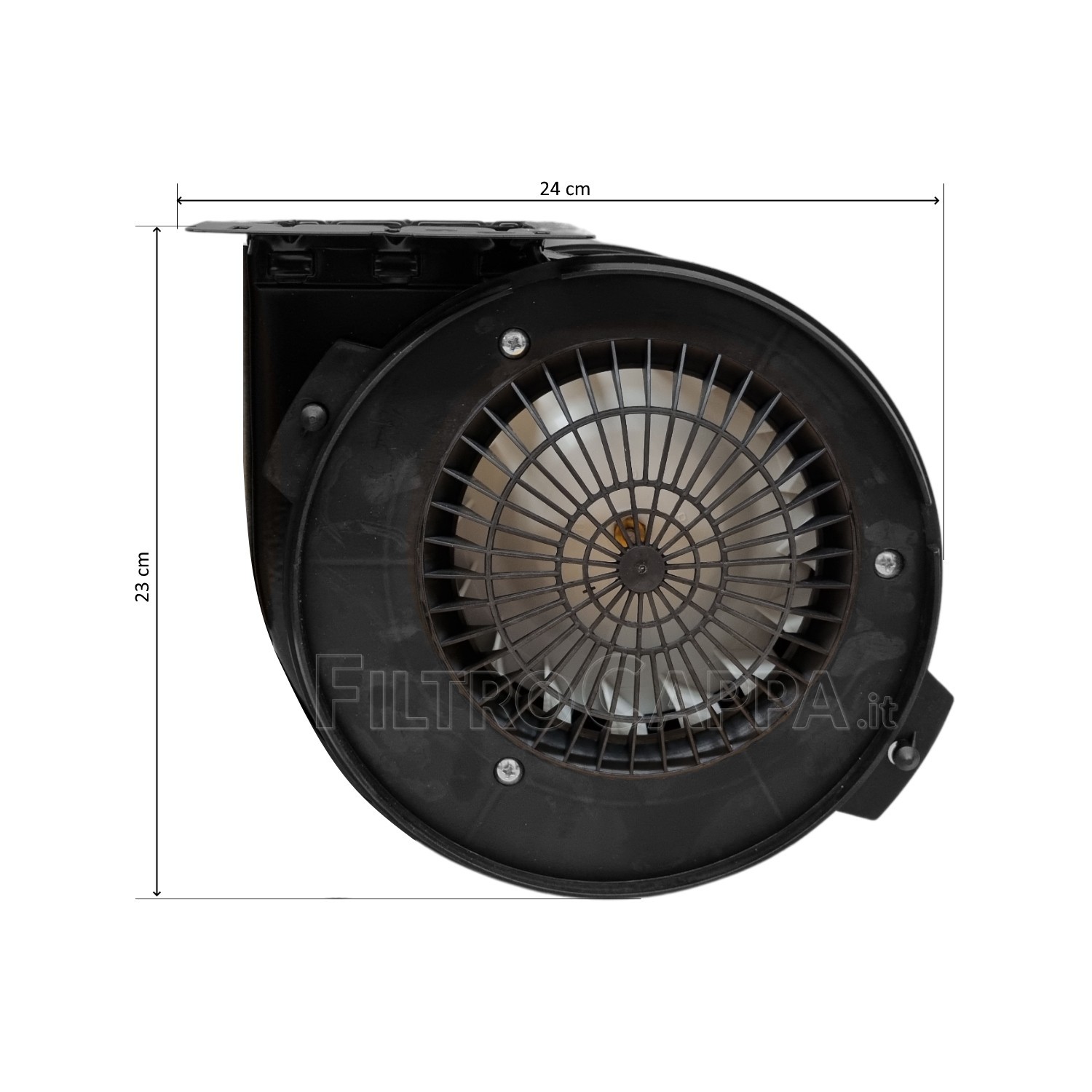

Motor for MAX FIRE Extractor Hood Original 141100381
550 m³/h Motor for MAX FIRE Extractor Hood Original 141100381
Compatible with MAX FIRE models:
- Sottopensile L1162
- CP Pensile 90 IX M55000218
Compatible with other brands and models:
- FOX GROUP
- STAR
Product code:
141100381- SIT GL37DT031 - 4055148292
Key Features:
- Material: Metal
- Air outlet: Rectangular
- Speeds: 3
- Extraction capacity: 550 m³/h

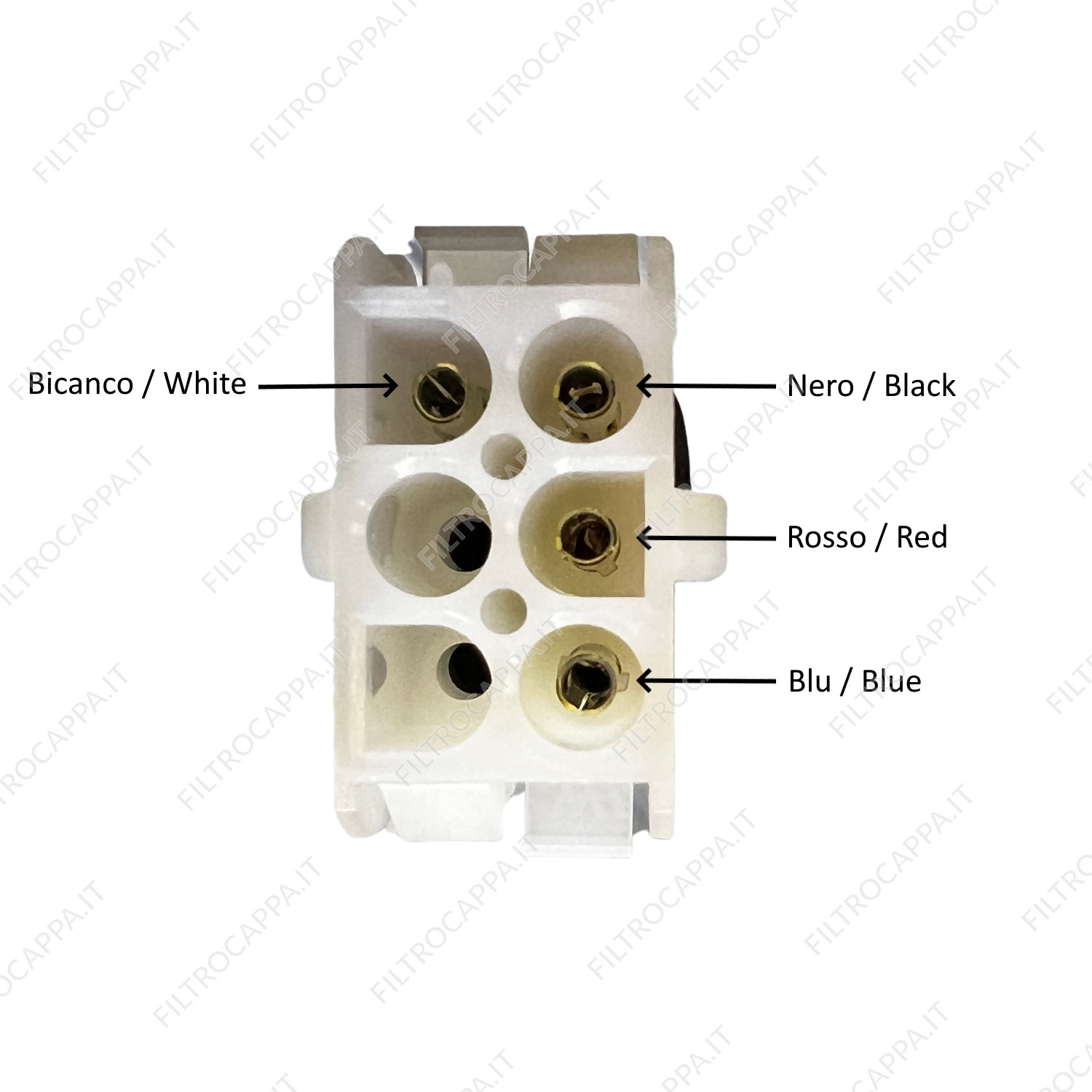

Electrical Wiring Scheme:
- 1st Speed: Blue wire
- 2nd Speed: Red wire
- 3rd Speed: Black wire
- Common wire: White
What happens if wiring is incorrect?
Incorrect electrical wiring can result in malfunctions such as incorrect speed selection, reduced performance, or even short-circuit risks. In severe cases, it may damage the motor or compromise system safety. To ensure a safe and proper installation, follow the provided wiring diagram carefully or consult a qualified technician.
Important Note:
For compatibility with some modern keyboards, an adapter cable may be required (sold separately). This adapter ensures compatibility with newer control systems, preventing operational issues.
